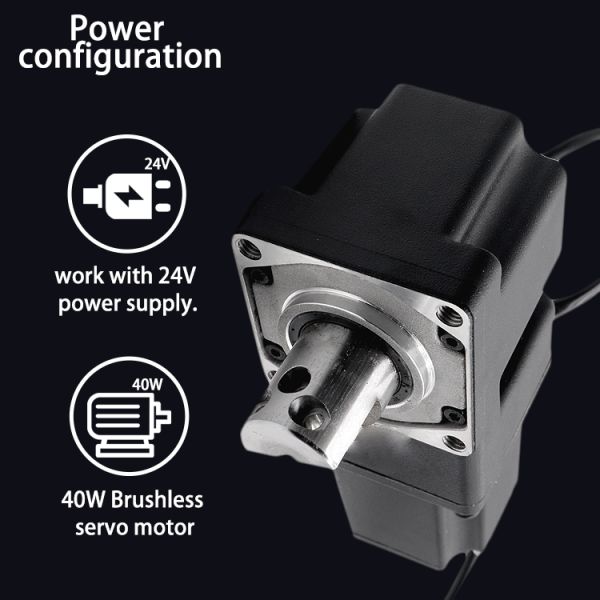

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates

Product Categories

Shenzhen Jiayu Mechatronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 24V 40W 3A Lowvoltage Brushless Servo Motor Suitable For Access Control Gates
Brand: CSJY
Price: 1 USD

Brand Name : CSJY

Model Number : GMBS70ZF-40A-1836-V1

Certification : CE

Place of Origin : China

MOQ : 2sets

Price : Negotiate

Payment Terms : T/T,L/C

Supply Ability : 5000sets/month

Delivery Time : 15 working days

Packaging Details : Cartons

Application : swing gate, speed gate, sliding gate

Features : fast opening and sensitive anti-pinch

Rated voltage : DC24V

Rated power : 40w

Rated current : 3A

Rated speed : 1800rpm

Ratio : 1:36

Output torque : 0.21Nm

Contact Now

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates

Features

High-Efficiency BLDC Motor: Brushless DC technology offers superior performance, higher torque, and a longer lifespan than brushed alternatives, with no carbon brushes to replace.
Robust Planetary Gearbox: The high-precision 1:36 reduction ratio gearbox provides high output torque, excellent durability, and low backlash for reliable and accurate movement.
Integrated Servo Control: Comes with a matching servo controller for precise speed and position control, enabling smooth starts and stops to reduce mechanical stress.
High Torque Density: Delivers exceptional torque (approx. 4-5 Nm) from a compact form factor, perfect for space-constrained installations.
Quiet and Smooth Operation: Ideal for residential and commercial environments where noise reduction is important.
Reliable & Maintenance-Free: Sealed construction and brushless design ensure consistent operation with minimal maintenance, even in harsh outdoor conditions.
Thermal Protection: Built-in safeguards protect the motor from overheating under heavy loads or continuous operation.

Applications

Swing gate
Speed gate
Tripod turnstile gate
Sliding gate
Flap gate

24V 40W 3A Low-voltage Brushless Servo Motor, Suitable For Access Control Gates
