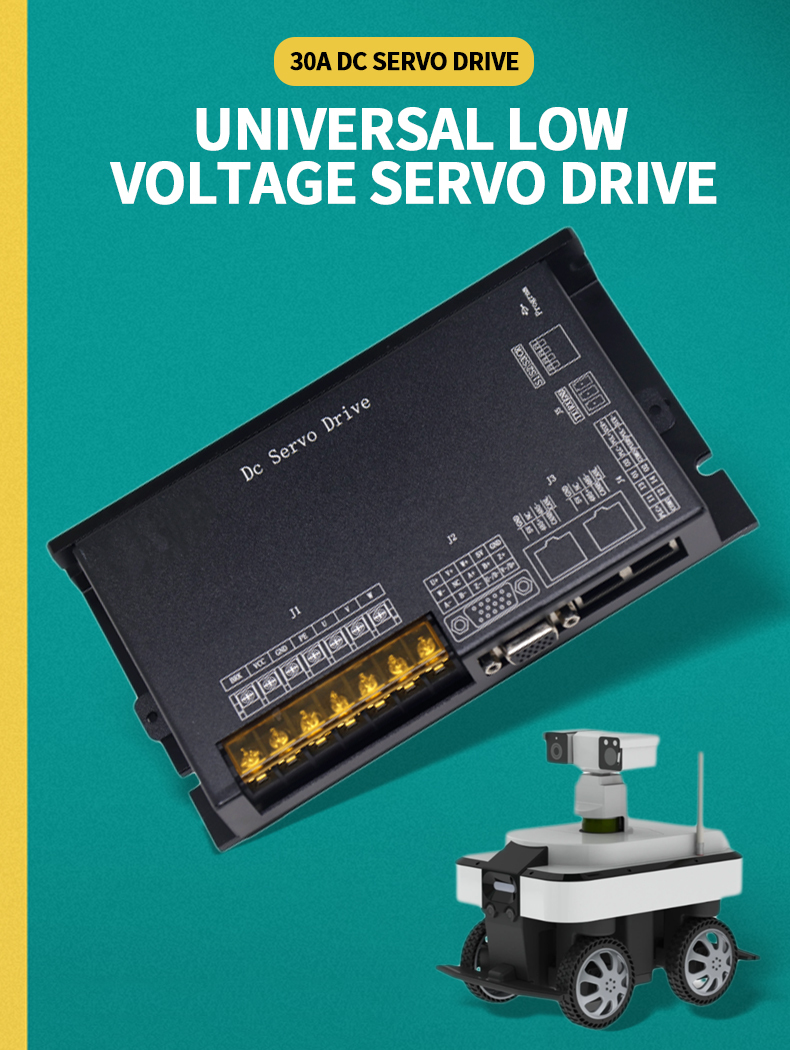

48V Low‑Voltage Servo Driver RS485 CANopen Optional EtherCAT AGV Mobile Robot Servo Controller
This low‑voltage servo drive is widely used in automated mobile robot (AMR), AGV handling trolley,
warehouse logistics robot, service robot,
Technical Specifications
| Item |
Specification Parameter |
Applicable Rated Motor Power
|
400W / 1000W Low‑voltage Servo Motor
|
| Encoder Feedback Type |
Incremental Encoder & Absolute Encoder Supported
|
| Working Control Mode |
Position Control / Speed Control / Torque Control / Single‑axis Independent Control
|
Standard Communication Interface
|
RS485, CANopen Field‑bus, Supports Multi‑axis Synchronous Equipment Control
|
Optional Communication Protocol
|
EtherCAT Industrial Ethernet
|
Rated Input Working Voltage
|
DC 24‑72V (Wide‑range Battery Power Supply, perfect for battery‑powered mobile robots)
|
| Power‑supply Design |
Dual‑power independent control; Built‑in 24V holding brake power supply
|
| Pulse Signal Input Type |
Differential‑mode signal / Open‑collector signal optional
|
| Main Application |
AGV, AMR, Automated Guided Vehicle, Service Robot, Logistic Handling Robot, Automated Warehouse Equipment |
Product Overview
Wide motor compatibility: Works with 400W & 1000W low‑voltage servo motor, supports incremental‑type and absolute‑value encoder feedback,
Four working control modes: Position control, speed control, torque‑closed‑loop control and standalone single‑axis control,
Custom‑available EtherCAT high‑speed real‑time communication option for high‑precision synchronous motion,
FAQ
Q1: What power‑range servo motors does this low‑voltage servo drive support?
A1: It is compatible with 400W and 1000W low‑voltage DC servo motor, which is widely adopted on mobile robot chassis.
Q2: Can the driver work with both incremental encoder and absolute encoder motor?
A2: Yes. Our servo driver supports both incremental‑type encoder and absolute‑value encoder feedback, you can
freely match your existing servo motor.
Q3: What control modes are available on this servo controller?
A3: Four complete control modes are provided: position control, speed control, torque control and independent single‑axis control. You can switch modes according to your robot motion requirement.
|
|
